Victor Type D Specifications:

Sorry... the Victor Type D was sold on August 31, 2005. Just the same, below are some photos of our 1904 Victor Type D. The restoration of this talking machine was completed January 18, 2005.

The Victor Type D was manufactured by The Victor Talking Machine Co. from 1903 to 1907 and was originally priced from $55 to $60. The Type D was the first Victor designed with a 12-inch turntable concurrent with the introduction of Victor's new 12-inch diameter records. The cabinet of Type D Victors manufactured from 1903 until late 1906 was similar in style, but larger than that of the Monarch Special. Made of top-grade quartersawed oak, the cabinet housed a three-spring motor. In October 1906, a new plainer cabinet was introduced for the Type D. The new cabinet offered simple, straight sides with plain corner columns, and most instruments with this later cabinet style carried the designation "V" rather than "D" on the ID plate. This rare version of the Victor D comes with the earlier style case including a triple-spring spiral-drive motor, an Exhibition Reproducer with a quick-release lever, an unusual early Victor speed control, and the Victor No 22 WO Horn with a 22-inch Bell and made of Quartered Oak Crossbanded Veneers. A detailed description and history of the Victor D are available on page 23 of the current "Look for the Dog" book (available for $19.95).

This oak talking machine has been completely restored back to factory condition using the same techniques as when the machine was new. Shellac and varnish have been applied and hand rubbed between coats which completely duplicates the original finish. Of course the motor and reproducer have been rebuilt to insure hours of music and fun.

Top of the page

Item No.	36908
Sold for:	$5000.^oo
Period:	1904
Case:	Solid quarter-sawed oak with ribbed corner columns.
Hardware:	Nickel Plated
Reproducer:	Exhibition with quick-release lever
Horn:	Victor No. 22WO Quartered-Oak Crossbanded Veneers having a 22-inch Bell
Motor:	Triple-Spring, Spiral Drive
Dimensions:	9"h; 15"w; 15"d

Look for the Dog
A great companion book for the phonograph collector. The "Look for the Dog" book features the complete Victor Talking Machine line through 1929.

Click here to read more about this and other books!

The Victor Type D

Click on any of the photos below to see a larger photo in a new window.

Victor Type D
Front Left View
Larger

Victor Type D
Front View
Larger

Victor Type D
Front Right View
Larger

Top of the page

Victor Type D
Right View
Larger

Victor Type D
Right Rear View
Larger

Victor Type D
Rear View
Larger

Victor Type D
Left Rear View
Larger

Victor Type D
Left View
Larger

Top of the page

Victor Type D
Rear Mount Right View
Larger

Victor Type D
Rear Mount Left View
Larger

Victor Type D
Tone Arm and Reproducer View
Larger

Top of the page

Victor Type D
Front Right Case View
Larger

Victor Type D

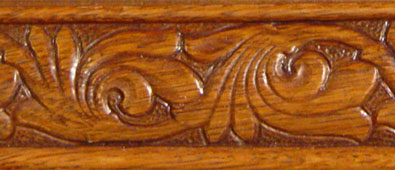

Side Panel Detail View
Larger

Victor Type D
ID Plate View
Larger

Top of the page

Victor Type D
Motor View
Larger

Victor Type D
Motor Close-up View
Larger

Top of the page

Victor Type D
Front Case Close-up View
Larger

Victor Type D
Brake Close-up View
Larger

Victor Type D
Speed Regulator Close-up View
Larger

Top of the page

Victor Type D
Case Base Detail View
Larger

Top of the page

	Specifications are: Item No.: 36908 Sold for: $5,000.^oo Needles: Includes a package of 100 new single-play needles in loud tone. Contact us for more details!		Case: solid quarter-sawed oak with ribbed corner columns and measures 9"h; 15"w; 15"d Horn: Victor No. 22 WO Quartered-Oak Crossbanded Veneers having a 22-inch Bell		Hardware: Nickel-plated Reproducer: Lever type Exhibition Motor: Triple-spring and has New Main Springs installed
